Good Quality Piston And Rod Seals - Piston Seals FDAS are double acting piston seals – Yimai Detail:

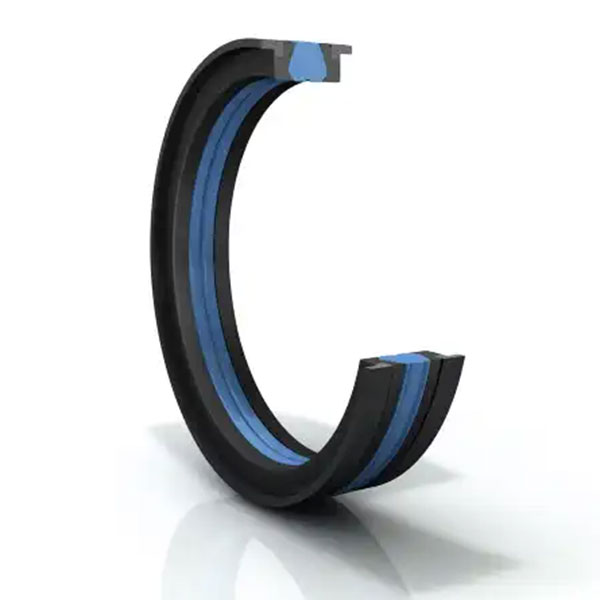

DAS/DBM combined seal is a double-acting seal and guide element consisting of an elastomer seal ring, two retaining rings and two guide rings. The sealing ring can play a good sealing role in static and dynamic, and the retaining ring can prevent the rubber sealing ring from being squeezed into the sealing gap, the role of the guide ring is to use the piston in the cylinder guide and absorb radial force. This design provides a compact seal and guide combination that can be used for open or closed mounting grooves.

Several different cross section geometryof DAS/DBM combined seals are available in practice, usually selected based on existing installation grooves.

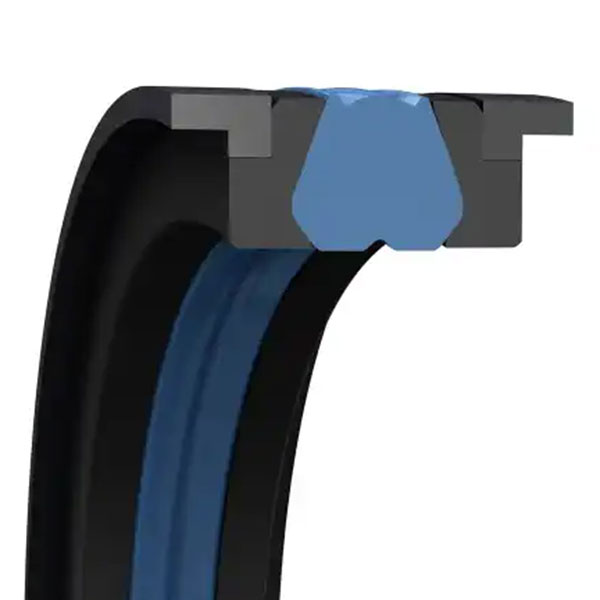

The cross section of DBM combined seal is characterized by a herringbone file ring, which can effectively prevent the deformation or extrusion of the elastomer seal ring, and the L-shaped guide ring on the outside of the ring has a central role.

When the system pressure is high and the radial load is high, DBM/NEO can also be considered as the piston seal for DBM combined seal.

icon111

DoubleActing

icon22

Helix

icon33

Oscillating

icon444

Reciprocating

icon55

Rotary

icon66

SingleActing

icon77

Static

Ø – Range Pressure Range Temp Range Velocity
25~600  ≤400 bar -35~+100℃ ≤ 0.5 m/s

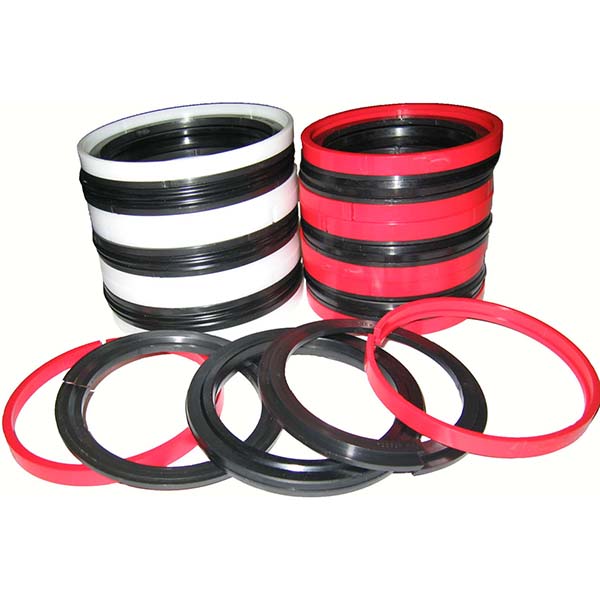

Product detail pictures:

Good Quality Piston And Rod Seals - Piston Seals FDAS are double acting piston seals – Yimai detail pictures

Good Quality Piston And Rod Seals - Piston Seals FDAS are double acting piston seals – Yimai detail pictures

Good Quality Piston And Rod Seals - Piston Seals FDAS are double acting piston seals – Yimai detail pictures

Good Quality Piston And Rod Seals - Piston Seals FDAS are double acting piston seals – Yimai detail pictures
